Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections

Place of Origin China
ブランド名 Trio-Vision
モデル番号 TVS-2000HD
最小注文数量 1ユニット
価格 交渉可能
Packaging Details CARTON
受渡し時間 2〜4週間
Payment Terms T/T
Supply Ability 100 units per month

無料のサンプルとクーポンを私に連絡してください.

WhatsApp:0086 18588475571

ウェチャット: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
リモートコントロール 利用可能 回転 360度
操作システム Windows/Android 保証 1年
解決 高解像度 防水定格 IP68
ハイライト

IP68 waterproof pipe inspection camera

,

drain inspection camera kit

,

CCTV pipe inspection equipment

メッセージ
製品の説明

Product Description:

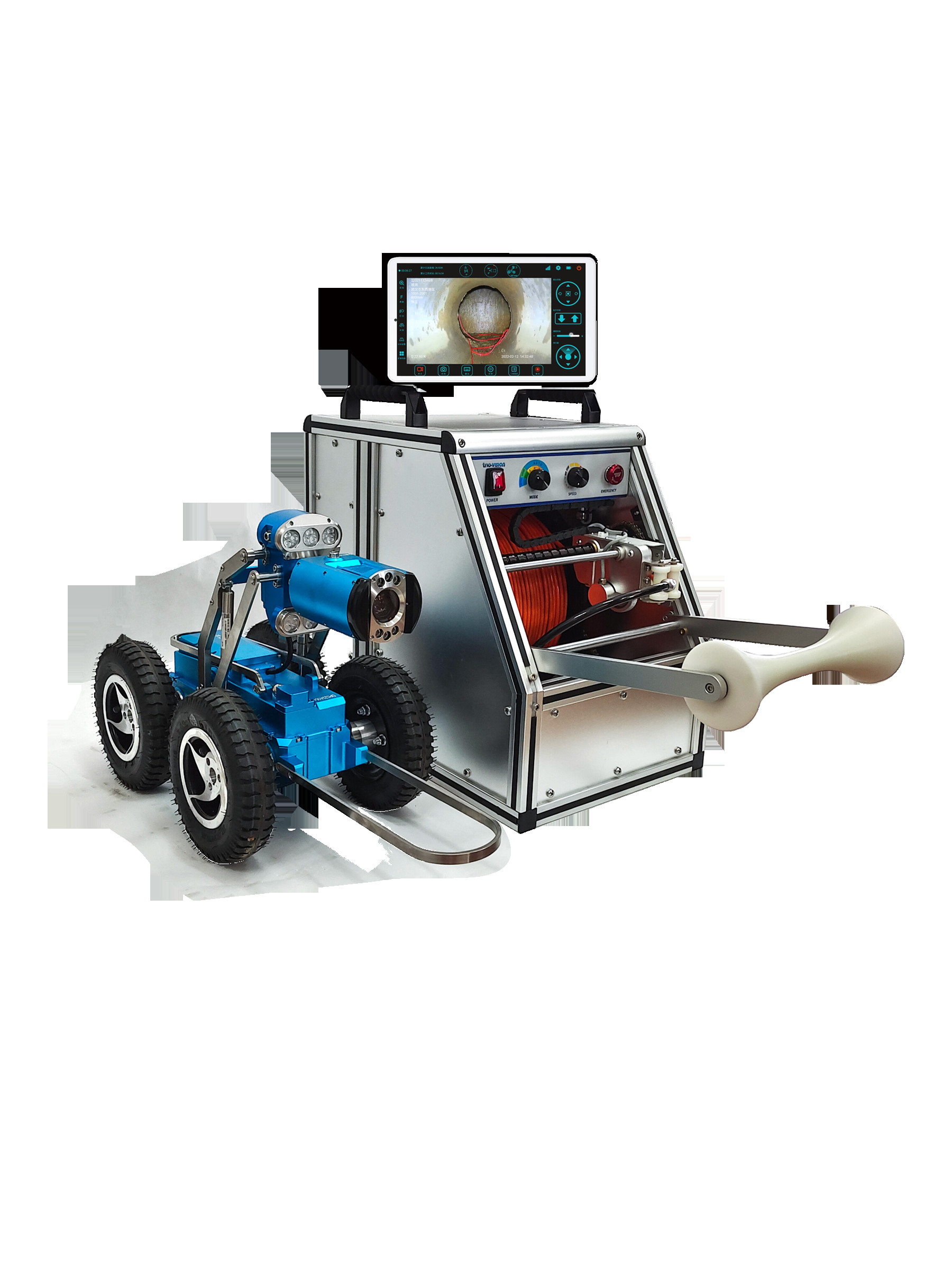

TVS-2000 HD high definition pipe inspection crawler is for sewer/drain/mainline video inspection, and suitable for pipe diameter is from 150-1500mm. The system is composed of controller(Android of Windows control), crawler, camera, cable drum. By using Wifi transmission, it can controlled by tablet or laptop, more convinient and portable. experience unparalleled performance and reliability.



Features:

1)High definition camera with 1080P definition
2) Wireless control by tablet or laptop
3) Windows/ Android control software
4) Sonde location
5) Pan and tilt camera, pan 360°, tilt 2 * 90°
6) 10:1 optical, 12:1 digital zoom



Technical Parameters:

Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 0
Control Unit ZKQ-300HD

  • Integrated industrial controller, high definition LCD touch screen
  • 10” LCD, sunshine readable, built-in collecting and analysis software
  • Windows 10 system, Intel i series CPU, large capacity storage, 256G solid hard disk
  • Waterproofed keyboard, full physical key operation, easy operation
  • Portable design, convenient for mobile and outside working.
  • Interface: VGA*1, USB*2, HDMI*1, ethernet*2, data*1
  • Weight: 5.5kg
  • Dimension: 405*265*114mm
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 1
Pan&Tilt Camera JT-100HD

  • High definition camera, embedded adjustable LED light
  • Axial 360° rotation, radial 270° rotation
  • 120 times zooming(12:1 digital, 10:1 optical)
  • Manual and auto focus
  • Anti-fogging camera lens
  • Laser gauge (optional)
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 2

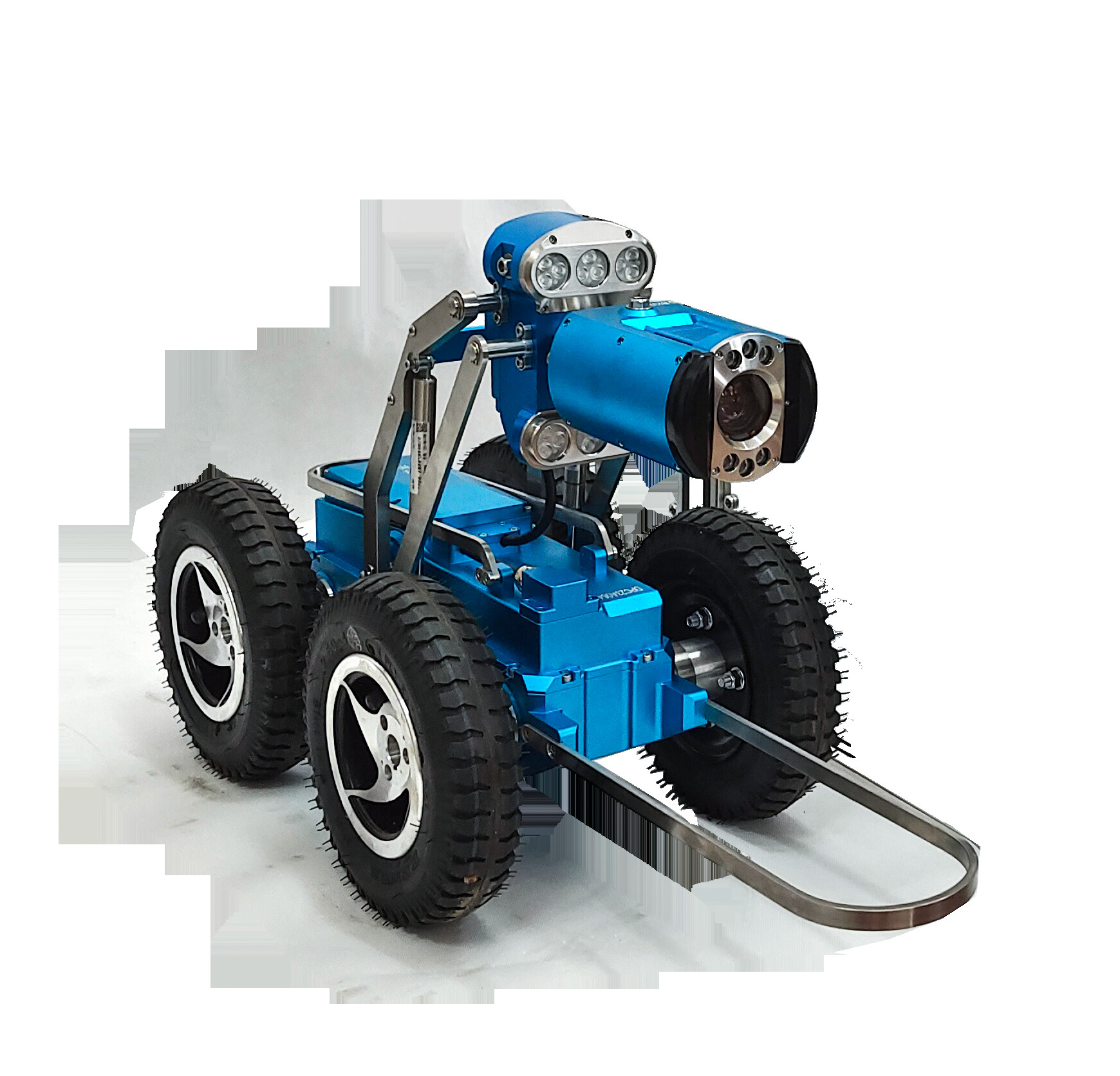

Cralwer ROBOT-300HD

  • For pipe diameter from 250-1200mm
  • Driven by two brushless DC motor, powerful drive
  • Electrical elevator, 6 sets of auxiliary lights, HD rear camera lighting
  • Forward, backward and steering dumping warning
  • Climbing angle 45 degree
  • Waterproof: IP68, 10m under water
  • Multi-frequency sonde(512Hz, 640Hz, 8KHz, 33KHz) optional
  • Weight: 16kg
  • Dimension: 732*231*173mm
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 3
Cralwer ROBOT-150HD

  • Six wheel drive, for DN125-300mm
  • Multi-frequency sonde(512Hz, 640Hz, 8KHz, 33KHz) optional
  • Weight: 9.6kg
  • Dimension: 426mm*203mm*134mm
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 4
Automatic Cable Drum
DLPA-300HD
  • Three working modes: auto, manual and cable retrieving only
  • Video signal and control command, transmission without delay and loss
  • Auto distance measurement with high accuracy meter counter, emergency stop and brake
  • Portable design, convenient for moving and outside working
  • Cable length: standard 120m, max. 300m optional
  • Dimension: 580*390*520mm
  • Weight: 50kg
Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 5
Manual cable drum DLPM-150HDE(Optional)
  • Embedded battery for power supply, working time over 8hrs
  • No delay and loss transmission of video signal and control command
  • Emergency stop and brake
  • Manual cable retrieving and auto layering
  • Portable design, convenient for moving and outside working.
  • Dimension: 510*400*450mm
  • Weight: 39kg

Pipe Inspection Waterproof Rating IP68 Drain Inspection Camera Kit for Accurate Inspections 6
